FET CATZ Lighting Products

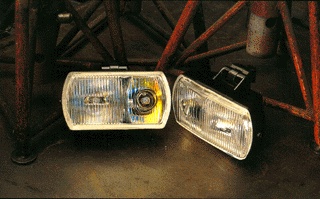

Compact Square Dual
Combining a wide-angle fog lamp and an ultra-narrow pattern spot light into one super compact housing, the CSD is one of the most versatile of the CATZ series. Now you can switch to the fog lamp for use in inclement weather and for high speed driving, flip the switch to the spot configuration for extra range. Available with clear or clear/yellow lens or a clear lens with a gold iridium Bulb combination, the versatile CSD combines the powerful package into a small die-cast aluminum housing for easy installation in most compact and sub-compact vehicles. If bad weather is part of your driving routine, then reach for the CSD.

Color: Clear, Clear/Yellow, or or Clear with a Gold Iridium Bulb
Bulb: H3 12V 90W
Illumination Angle: Fog 90 degrees, Spot 19 degrees
Size: 3.46"(height) x 6.29"(width) x 2.81"(depth)
Contents: (2) CSD lamps, (2) Single Relays, (1) LED Power Switch, (1) Function Switch, (2) Switch Panels, (2) Fuses, and (1) Plug-in wiring harness.



Click here to see actual beam patterns
